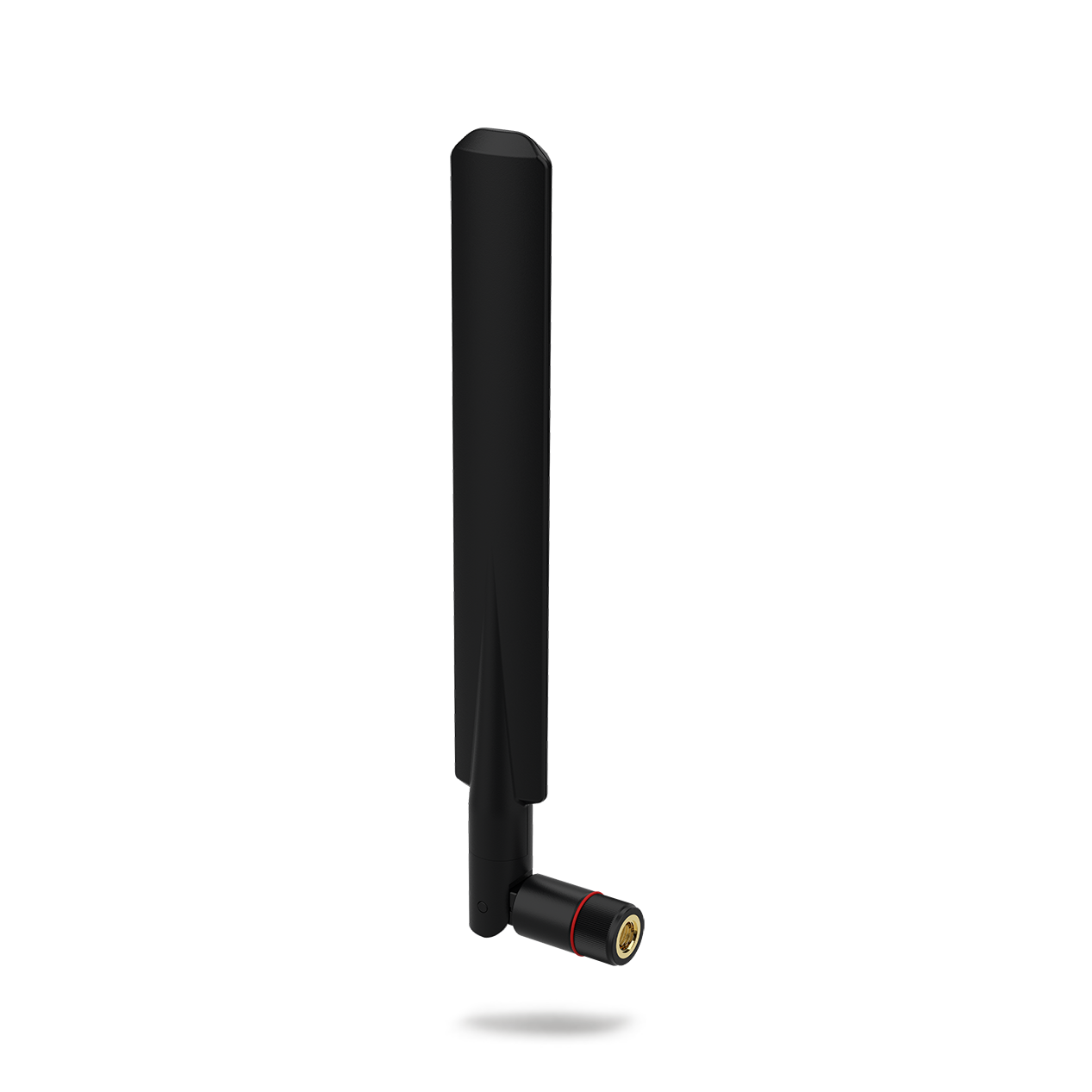

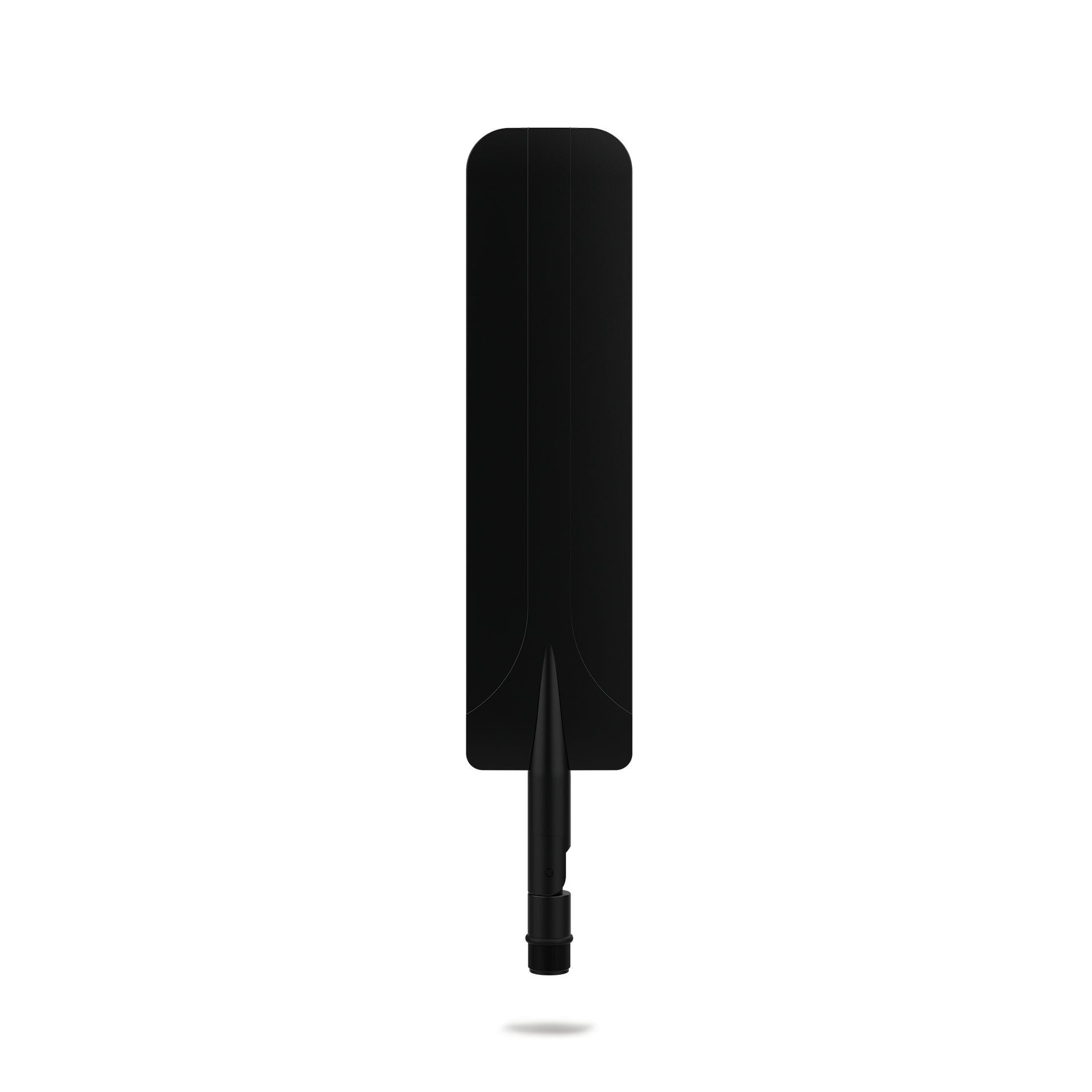

PWB-6-60-RSMAP | Wide Band 4G/5G Terminal Paddle Antenna
- The PWB-6-60-RSMAP antenna is a ground plane independent antenna covering 617-960/1710-3800/4400-6000MHz. Supporting 2G/3G/4G and new 5G bands the PWB-6-60-RSMAP is the ideal one-size-fits-all solution for next-generation router and modem devices. Designed for terminals and routers, the PWB-6-60-RSMAP features an articulated sma connector with 3 step locking to set optimum angle.
Features
- Wideband Cellular Blade Style Antenna
- Cost-Effective Solution
- Plug & Play Product
- Covers 600-6000MHz Cellular Bands

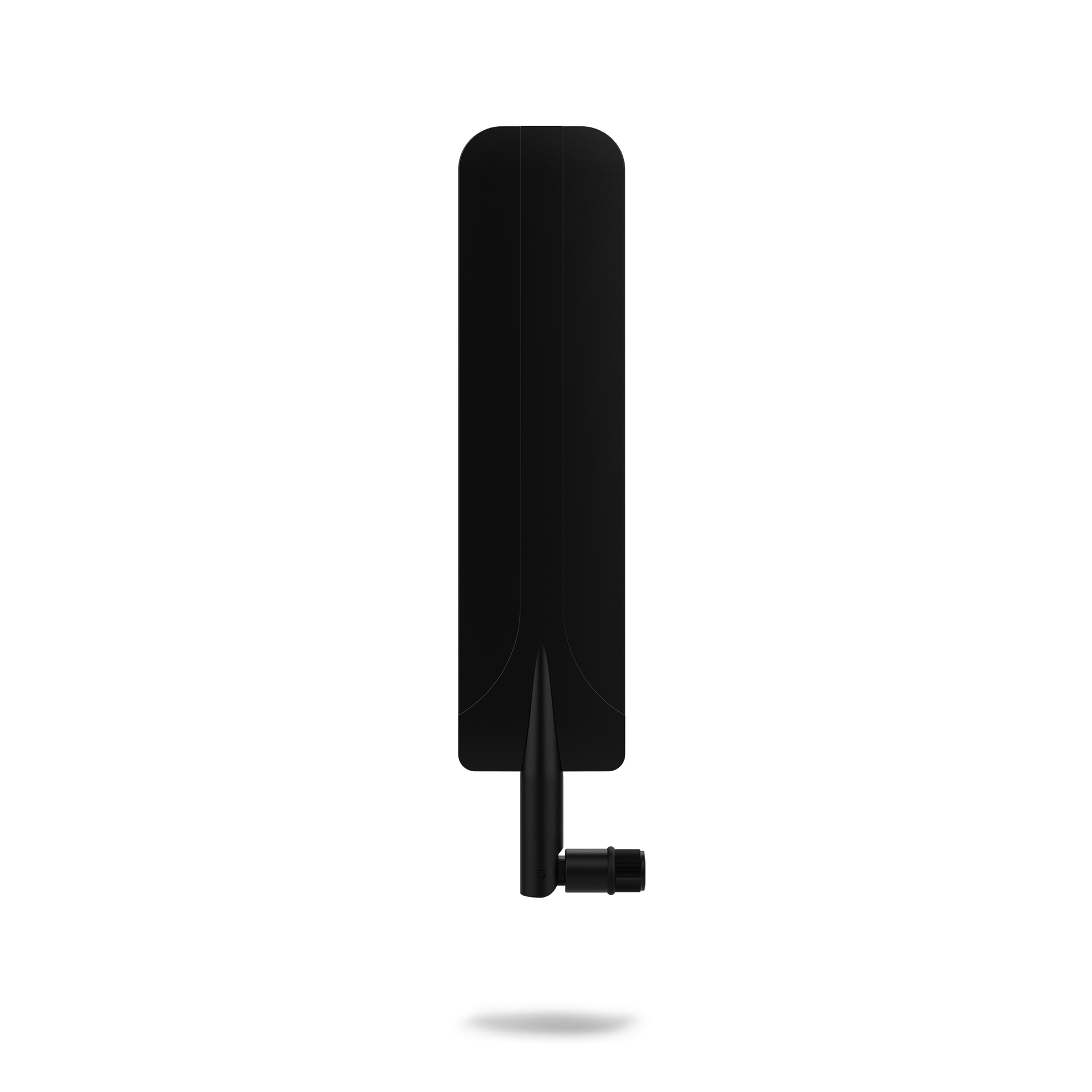

- Supplied with Right Angle Hinge Joint
Product Overview
Description
Part Numbers
Specification
Accessories
Description
The PWB-6-60-RSMAP antenna is a ground plane independent antenna covering 617-960/1710-3800/4400-6000MHz.
Supporting 2G/3G/4G and new 5G bands the PWB-6-60-RSMAP is the ideal one-size-fits-all solution for next-generation router and modem devices. Designed for terminals and routers, the PWB-6-60-RSMAP features an articulated sma connector with 3 step locking to set optimum angle.
Part Numbers
| SKU | Colour | Cellular | PWB-6-60-RSMAP | Black | Yes |
|---|
| SMA (m) |
Specification
| ELECTRICAL DATA | |
|---|---|
| Pattern | Omnidirectional |
| Max Input Power(W) | 10 |
| Frequency Range | Gain | 698 – 960MHz | 2dBi; 1710 – 3800MHz | 4dBi; 4400 – 6000MHz | 6dBi |
| MECHANICAL DATA | |
| Colour | Black |
| Length | 230 (mm) | 9.06 (in) |
| Width | 50 (mm) | 1.97 (in) |
| Height | 13 (mm) | 0.51 (in) |
| Operating Temperature | -30°/ +70°C (-22.0°/ +158.0°F) |
| TERMINATION DATA | |
| Connector (LTE) | SMA (m) | TECHNOLOGY DATA |
| Technology | 5G; 2G/3G; 2G/3G/4G |
Accessories
Product Features
Benefits
Application
Product Features
- Wideband Cellular Blade Style Antenna
- Cost-Effective Solution
- Plug & Play Product
- Covers 600-6000MHz Cellular Bands
- Supplied with Right Angle Hinge Joint
Benefits
- Suitable for use on any Cellular Router With SMA Male Connector Fitted
- 4G/5G LTE Ready
Application
- Cellular Routers
