LPB-6-60-NJ | Low Profile Antenna 5G/4G/3G/2G
- The LPB-6-60-NJ antenna is a cost effective omni-directional panel / bracket mount antenna for 4G/3G/2G and 5G devices from 617-960/1710-6000MHz. The LPB-6-60 is supplied with an integrated N (f) bulkhead connector and wall mount bracket for ease of installation.
- Cost effective solution
Product Overview
Description
Part Numbers
Specification
Accessories
Description

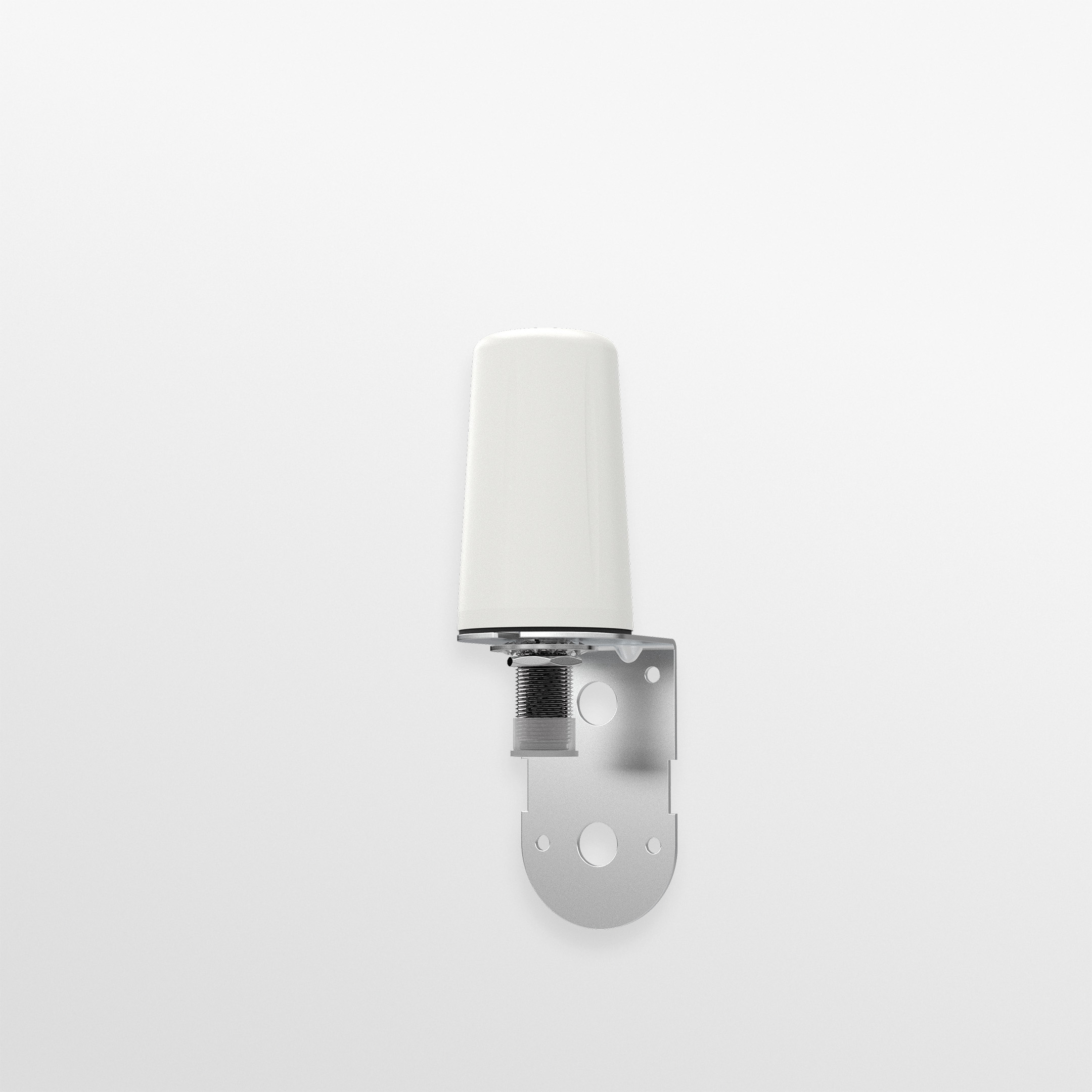

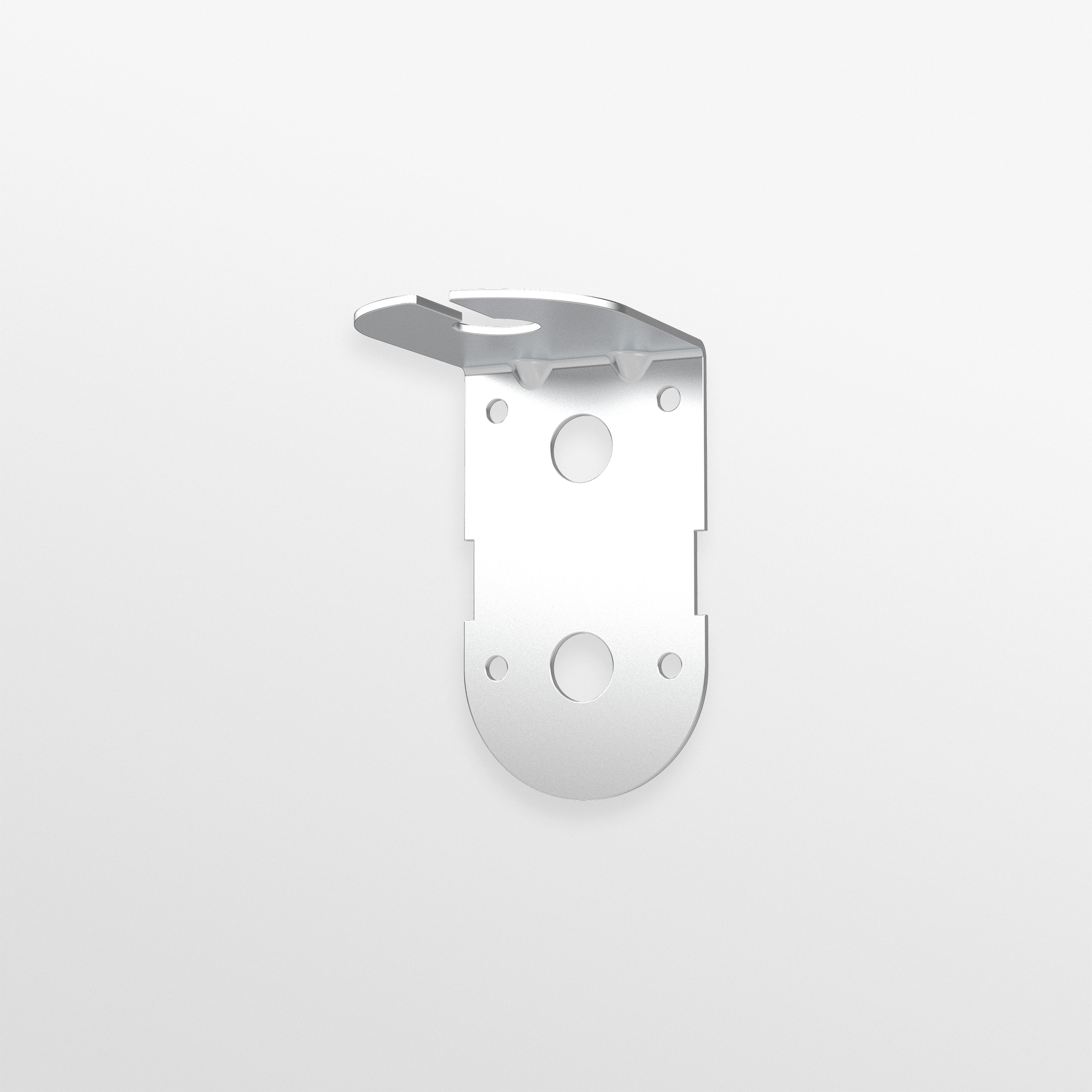

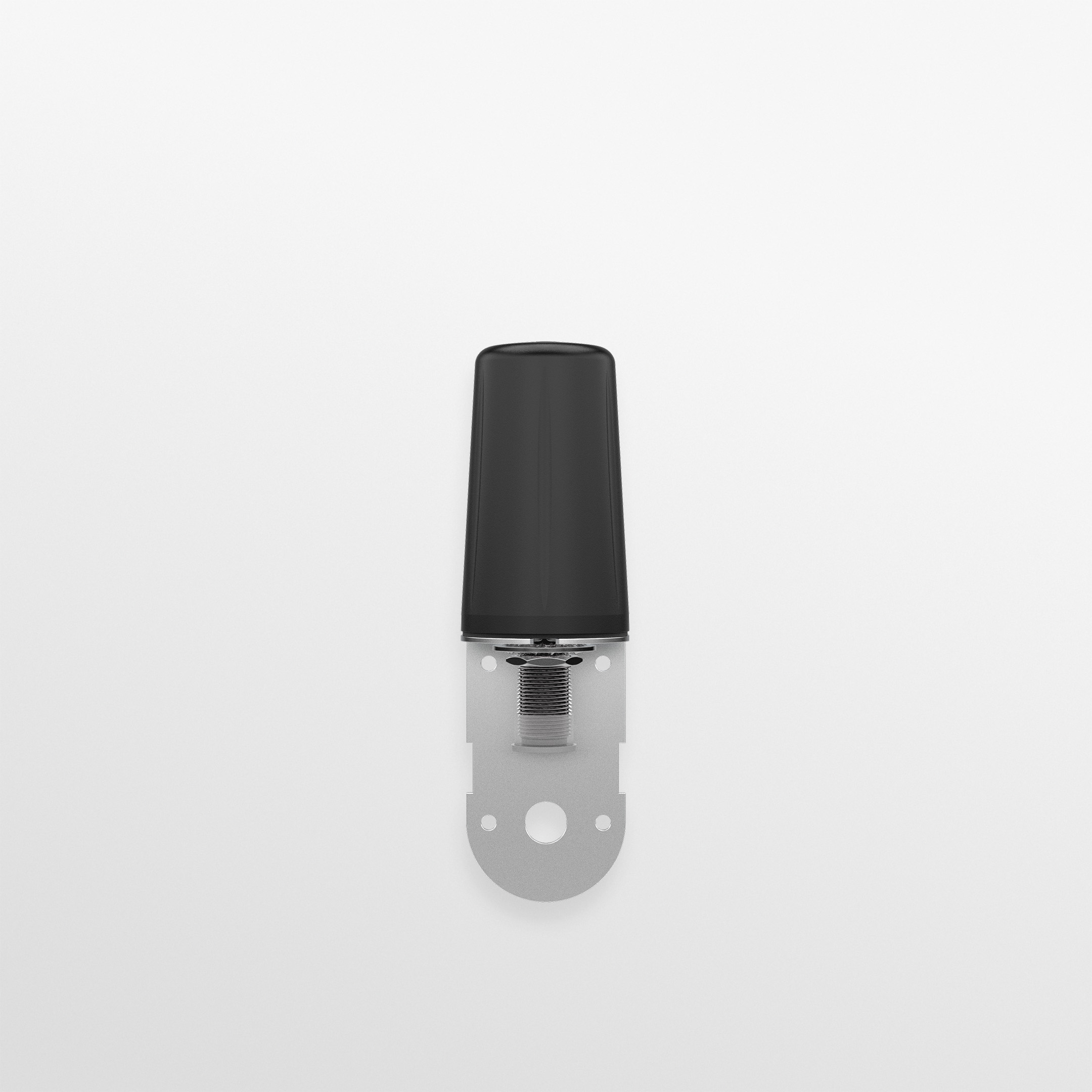

The LPB-6-60-NJ antenna is a cost effective omni-directional panel / bracket mount antenna for 4G/3G/2G and 5G devices from 617-960/1710-6000MHz. The LPB-6-60 is supplied with an integrated N (f) bulkhead connector and wall mount bracket for ease of installation.
This antenna is an ideal solution for use in industrial and domestic environments with cellular modems/routers and Machine to Machine (M2M) wireless connectivity applications.
This LPB-6-60-NJ requires a conductive ground plane of >300mm (1′) diameter for optimal performance or it can be mounted on the supplied bracket.
This antenna is an ideal solution for use in industrial and domestic environments with cellular modems/routers and Machine to Machine (M2M) wireless connectivity applications.
This LPB-6-60-NJ requires a conductive ground plane of >300mm (1′) diameter for optimal performance or it can be mounted on the supplied bracket.
Part Numbers
Specification
| ELECTRICAL DATA | |
|---|---|
| Max Input Power(W) | 30 |
| Typical VSWR | <3:1 |
| Frequency Range | Gain | 617 – 6000MHz | |
| Cellular LTE Elements | SiSo |
| WIFI Elements | No |
| UHF Elements | No |
| GPS DATA | |
| Number of GPS Elements | No |
| MECHANICAL DATA | |
| Colour | Black |
| Colour Coding | BLACK |
| Height | 82 (mm) | 3.23 (in) |
| Diameter | 48 (mm) | 1.89 (in) |
| TERMINATION DATA | |
| Connector (LTE) | N (f) |
| MOUNTING DATA | |
| Mounting Type Fixed | Mast; Panel; Wall |
| Mounting Type Temp | Clip |
| Mounting Methods | Clip; Mast; Panel; Wall |
| APPROVALS DATA | |
| IP Rating | IP65 |
| IB Wave VEX File Available | FALSE |
| SAR TouchSafe | FALSE | TECHNOLOGY DATA |
| Technology | 4G/5G; WIFI; 5G; 2G/3G; 2G/3G/4G; Band 71 600MHz ready |
Accessories
Product Features
Benefits
Application
Product Features
- Low profile wideband antenna
- Cost effective solution
- Robust product with N (f) bulkhead connector
- Covers all 2G/3G/4G/5G LTE cellular bands from 600-6000MHz
- Panel or bracket mount
Benefits
- Robust low profile housing
- Covers global 4G LTE & 5G NR bands sub 6GHz
- Panel or bracket mount
- N bulkhead allows fitment to thick panels
- N connector suitable for low loss cables
Application
- M2M or IOT applications
- Vending machines and Kiosks
- Smart grid applications
