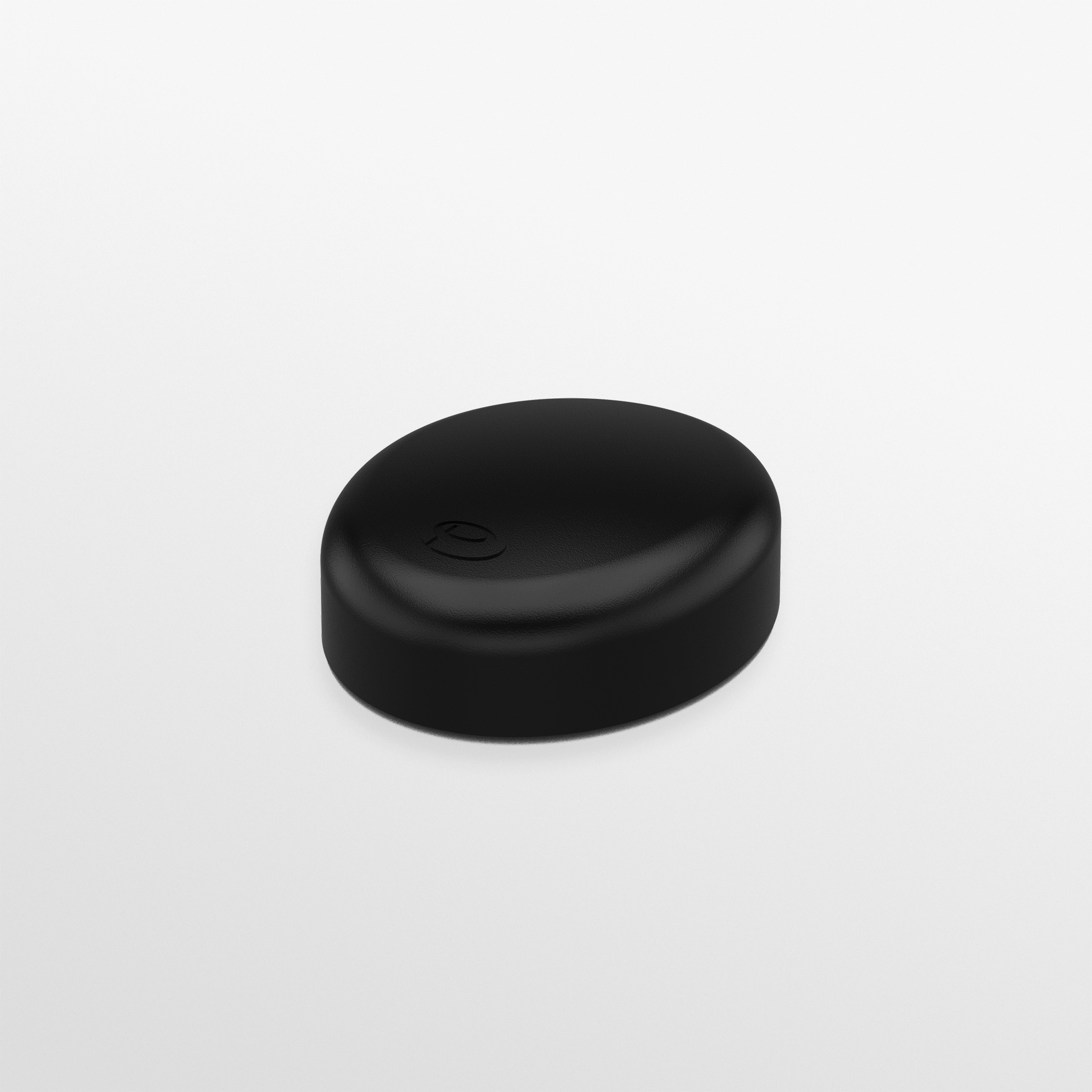

GPSP | GPS Panel Mount Base
- Efficient panel mount antenna | Active GPS Element. The GPSP antenna is a robust and efficient panel mount antenna range incorporating a sophisticated active antenna with 30dB LNA. With the ability to mount on a roof up to 6mm thick using only a single 14mm hole this antenna can be provided as a ‘plug & play’ kit for most GPS receivers.
Product Overview
Description
Part Numbers
Specification
Accessories
Description
Efficient panel mount antenna | Active GPS Element.
The GPSP antenna is a robust and efficient panel mount antenna range incorporating a sophisticated active antenna with 30dB LNA.

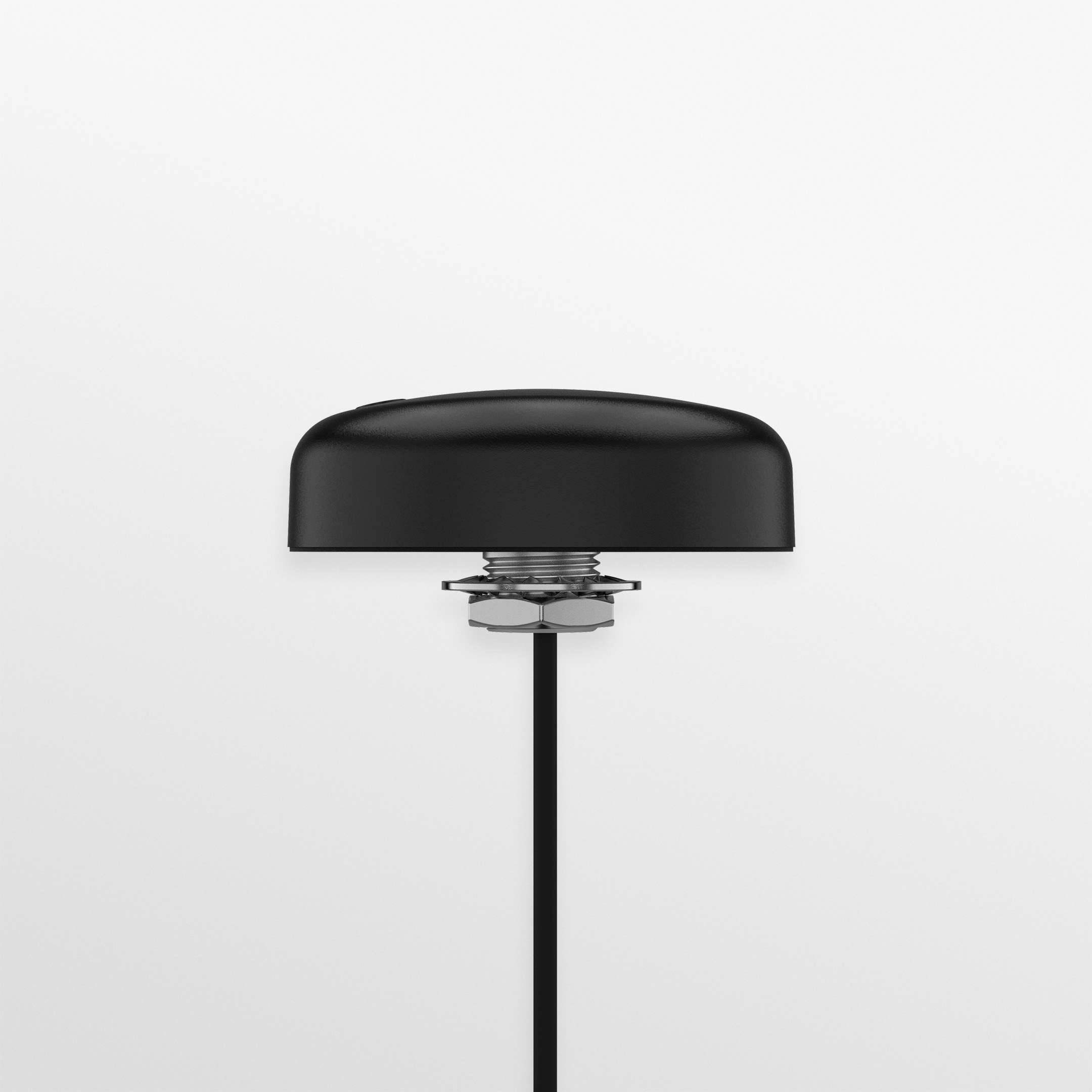

With the ability to mount on a roof up to 6mm thick using only a single 14mm hole this antenna can be provided as a ‘plug & play’ kit for most GPS receivers.
The GPSP antenna is a robust and efficient panel mount antenna range incorporating a sophisticated active antenna with 30dB LNA.
With the ability to mount on a roof up to 6mm thick using only a single 14mm hole this antenna can be provided as a ‘plug & play’ kit for most GPS receivers.
Part Numbers
| SKU | Colour | GPS | GPSP-F | Black | 1 Module |
|---|
| 0.3m |
| FME (f) | GPSP-SMAP | Black | 1 Module |
| 6m |
| SMA (m) |
Specification
| ELECTRICAL DATA | |
|---|---|
| Cellular LTE Elements | No |
| WIFI Elements | No |
| UHF Elements | No |
| GPS DATA | |
| GPS Frequency Range | 1562-1612MHz |
| LNA GAIN (dB) | 30 |
| Number of GPS Elements | 1 Module |
| MECHANICAL DATA | |
| Colour | Black |
| Length | 60 (mm) | 2.36 (in) |
| Width | 50 (mm) | 1.97 (in) |
| Height | 18.5 (mm) | 0.73 (in) |
| Operating Temperature | -40°/ +80°C (-40.0°/ +176.0°F) |
| CABLE DATA | |
| Cable length – GPS | min: 0.3 (m) | 0.98 (ft); max: 6 (m) | 19.69 (ft) |
| Cable Type (GPS) | RG174 |
| TERMINATION DATA | |
| Connector (GPS) | FME (f); SMA (m) |
| MOUNTING DATA | |
| Mounting Type Fixed | Panel |
| Mounting Methods | Panel |
| APPROVALS DATA | |
| IP Rating | IP65 | TECHNOLOGY DATA |
| Technology | GPS |
Accessories
Product Features
Benefits
Application
Product Features
- Panel Mount Product
- Small foot print
- 26dB Gain LNA Module
- Covers GNSS GPS Beidou & Galileo Satellite Constellations
- IP65 Rated
Benefits
- Plug & Play Antenna
- Easy to Install
- Supplied with Integrated Cable
Application
- Public Safety
- Mass Transit
- Logistics & Utility Vehicles
