BS[G]M-450-6-60 | MiMo 4G/5G Omni Antenna
- The BS[G]M-450-6-60 antenna is a MiMo Omni-directional broadband antenna range for 4G/5G devices. It covers 450-470/617-960/1427-6000MHz and is suitable for external or internal installation. The mounting bracket enables simple wall mounting using the supplied screws and wall plugs and mast/rail mounting using the supplied clamps.
Features
- 2×2 MiMo 450-470/617-960/1427-6000MHz 4G/5G
- Wall, rail or mast mount
- Optional GPS/GNSS – 26dB LNA
- Integrated coaxial cables
Product Overview
Description
Part Numbers
Specification
Accessories
Description

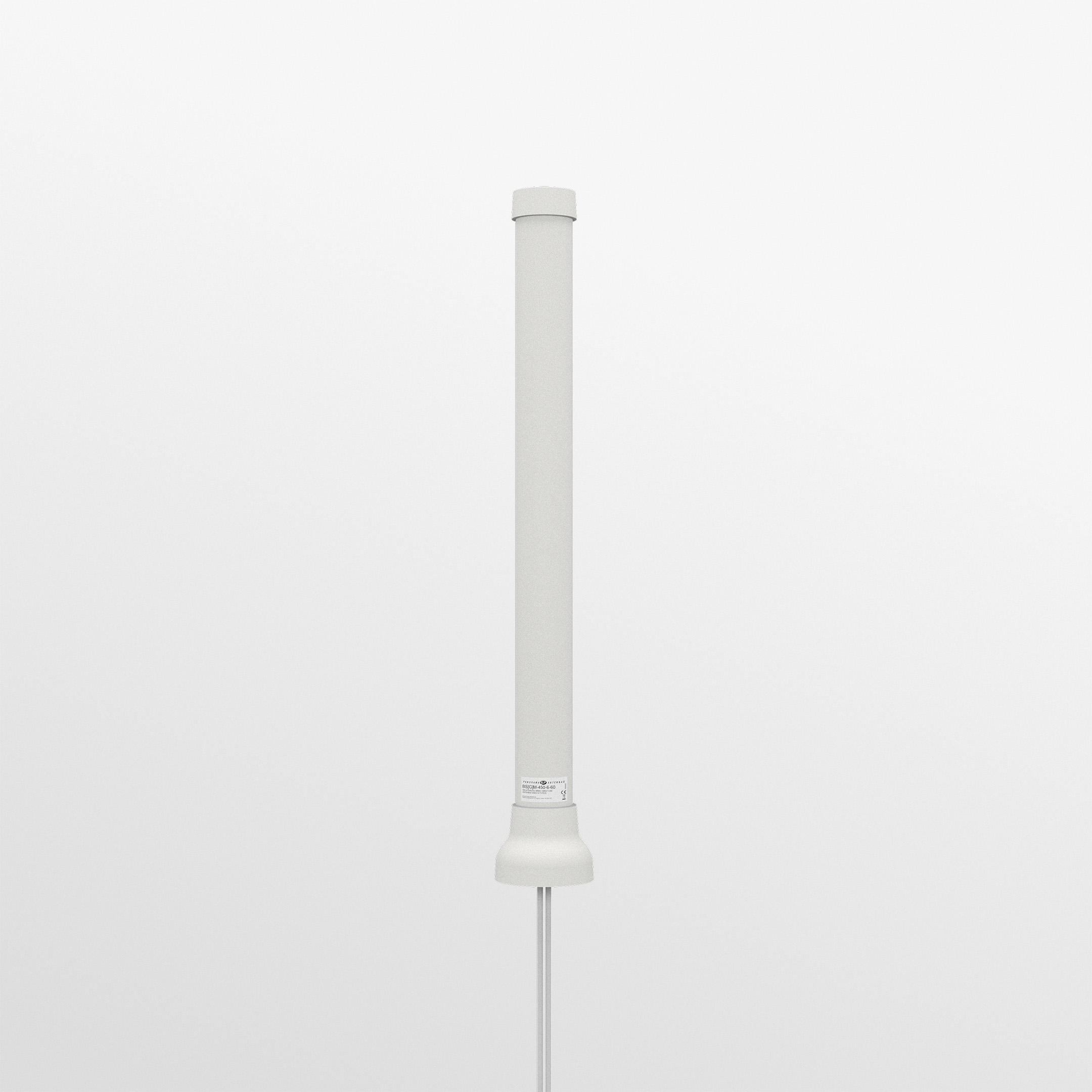

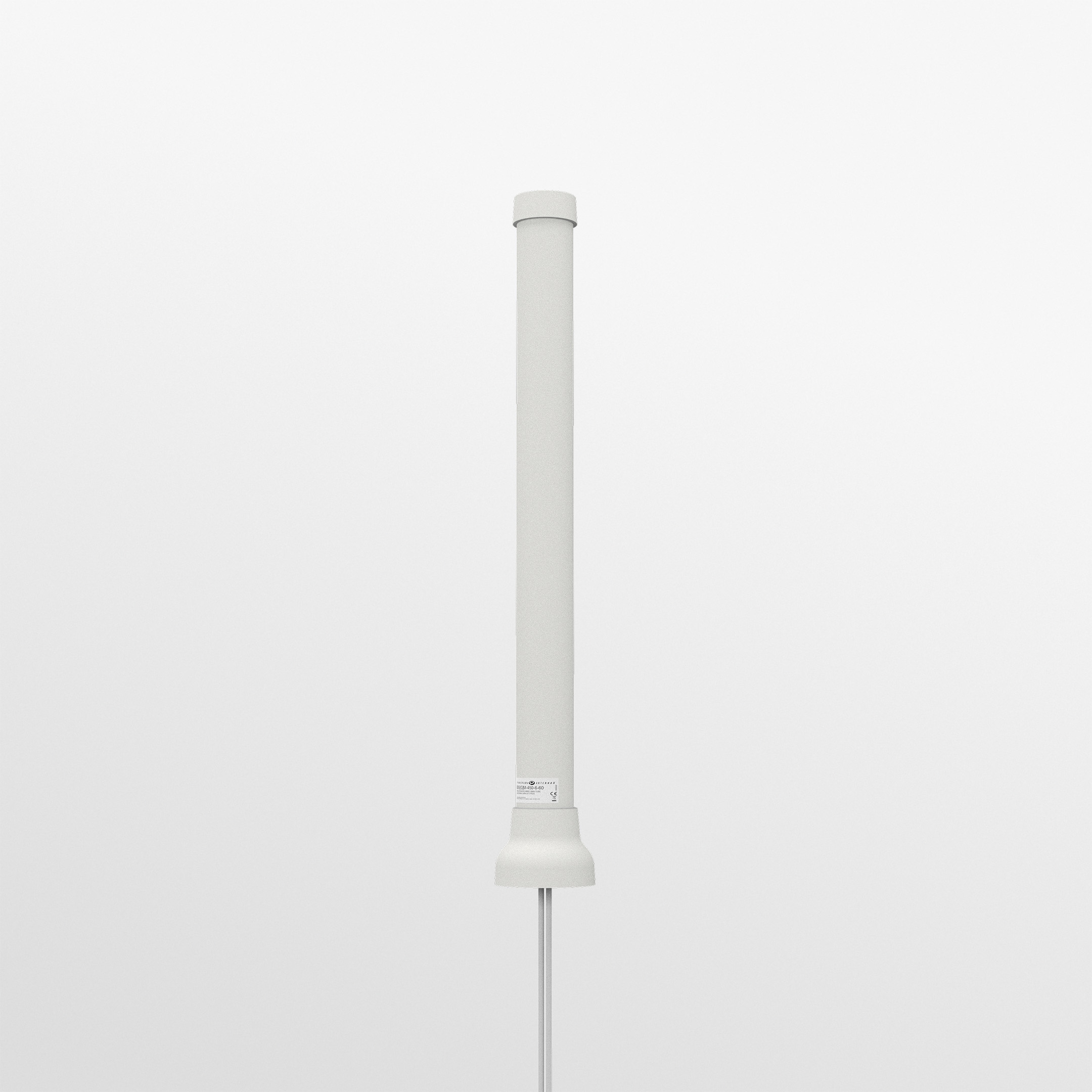

The BS[G]M-450-6-60 antenna is a MiMo Omni-directional broadband antenna range for 4G/5G devices.

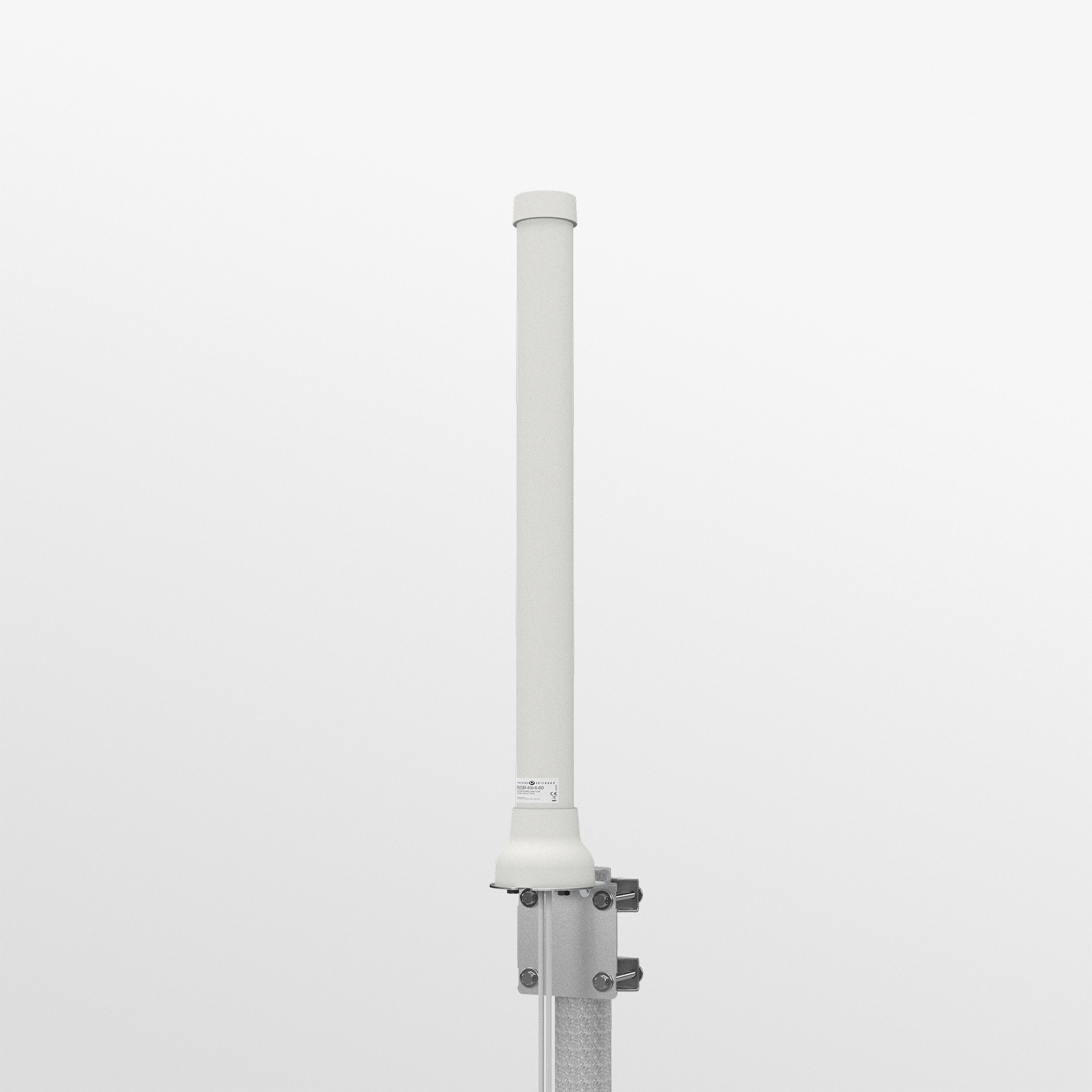

It covers 450-470/617-960/1427-6000MHz and is suitable for external or internal installation. The mounting bracket enables simple wall mounting using the supplied screws and wall plugs and mast/rail mounting using the supplied clamps.
The Omni-directional radiation pattern allows easy placement of the antenna in an elevated position, without requiring directional alignment. The BSGM type is supplied with an integrated GPS/GNSS module with 26dB LNA gain and advanced filtering to combat noise. This antenna is an ideal solution for IoT use in industrial and domestic environments for cellular modems/routers and Machine to Machine (M2M) wireless connectivity applications.

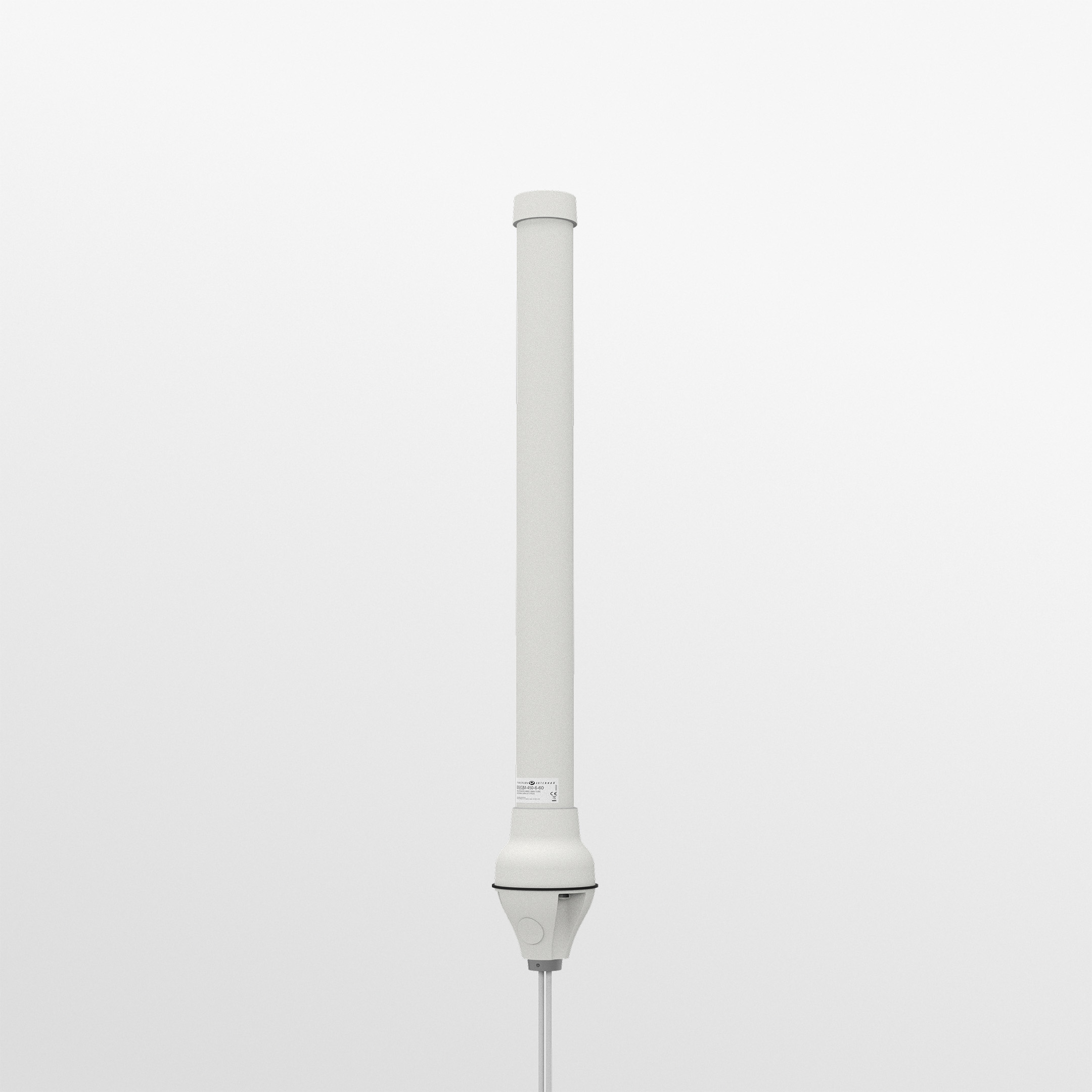

The weather and corrosion-resistant design also make the antenna suitable for certain marine and coastal applications and a 1”-14TPI adapter (P/N: SAB-315) is available for fitment to standard marine bases.
Part Numbers
| SKU | Colour | UHF | Cellular | GPS | BSM-450-6-60-05NJ | White | Yes | 2 x 2 MIMO | No |
|---|---|---|
| No Cable | 0.5m | |
| No Connector | N (f) | BSGM-450-6-60-5SP | White | Yes | 2 x 2 MIMO | 1 Module |
| No Cable | 5m | 5m |
| No Connector | SMA (m) | SMA (m) | BSGM-450-6-60-05NJ | White | Yes | 2 x 2 MIMO | 1 Module |
| No Cable | 0.5m | 0.5m |
| No Connector | N (f) | N (f) | BSM-450-6-60-5SP | White | Yes | 2 x 2 MIMO | No |
| No Cable | 5m | |
| No Connector | SMA (m) |
Specification
| ELECTRICAL DATA | |
|---|---|
| Pattern | Omnidirectional |
| Max Input Power(W) | 10 |
| Frequency Range | Gain | 450 – 470MHz | 2dBi; 617 – 960MHz | 3dBi; 1427 – 2700MHz | 6dBi; 3400 – 4200MHz | 6dBi; 4900 – 6000MHz | 6dBi |
| Cellular LTE Elements | 2 x 2 MIMO |
| WIFI Elements | No |
| UHF Elements | No |
| GPS DATA | |
| GPS Frequency Range | 1559-1612MHz |
| LNA GAIN (dB) | 26 |
| Number of GPS Elements | No; 1 Module |
| MECHANICAL DATA | |
| Colour | White |
| Height | 601 (mm) | 23.66 (in) |
| Diameter | 86 (mm) | 3.39 (in) |
| Operating Temperature | -40°/ +85°C (-40.0°/ +185.0°F) |
| CABLE DATA | |
| Cable Length – LTE | min: 0.5 (m) | 1.64 (ft); max: 5 (m) | 16.4 (ft) |
| Cable length – GPS | min: 0.5 (m) | 1.64 (ft); max: 5 (m) | 16.4 (ft) |
| Cable Type (Whip) | FR CS32 |
| Cable Type (LTE) | FR CS32 |
| Cable Type (GPS) | FR CS29 |
| TERMINATION DATA | |
| Connector (GPS) | SMA (m); N (f) |
| Connector (LTE) | N (f); SMA (m) |
| MOUNTING DATA | |
| Mounting Type Fixed | Mast; Panel; Wall |
| Mounting Methods | Mast; Panel; Wall |
| APPROVALS DATA | |
| IP Rating | IP67 |
| Cable Flammability | UN ECE R118; EN6722; EN455450-2; EN45545-2 HL3 | TECHNOLOGY DATA |
| Technology | UHF; 4G/5G; 5G; 2G/3G; 2G/3G/4G; Band 71 600MHz ready; FirstNet; GPS; GNSS |
