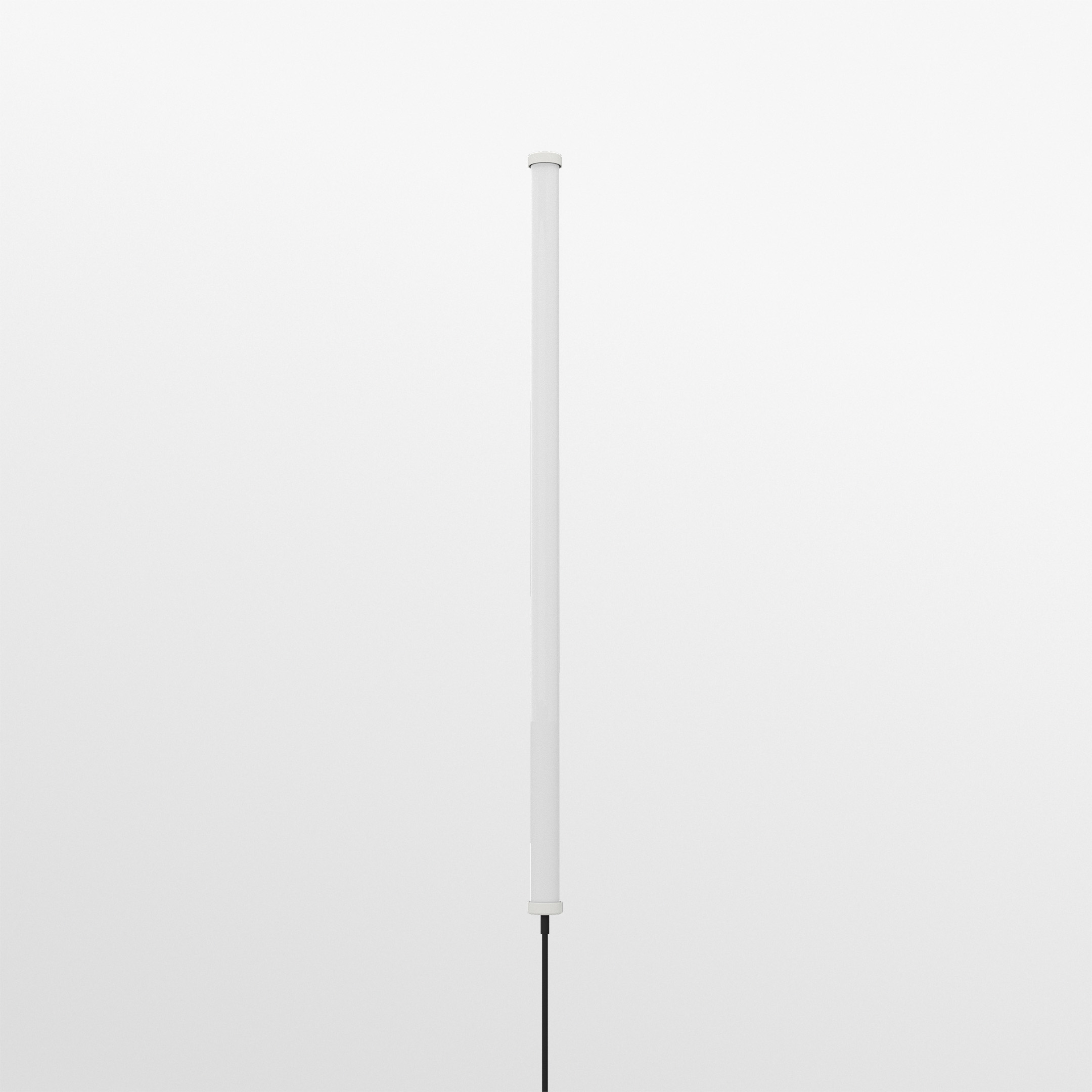

B6SE-[VAR]-03NJ | LoRa / LPWAN Light Duty Base Station Antenna
- The Panorama B6SE-[VAR]-03NJ is designed to decrease the lifetime cost of M2M and LoRa applications by offering a robust light duty base station for challenging signal environments. The antenna offers high gain Omni-directional performance for either the 868MHz or 915MHz frequency band. The efficient element design ensures a high first-time connection rate and an ongoing, robust communications link even in many low coverage areas. The antenna can be installed using the supplied wall mount brackets.
Product Overview
Description
Part Numbers
Specification
Accessories
Description
The Panorama B6SE-[VAR]-03NJ is designed to decrease the lifetime cost of M2M and LoRa applications by offering a robust light duty base station for challenging signal environments.

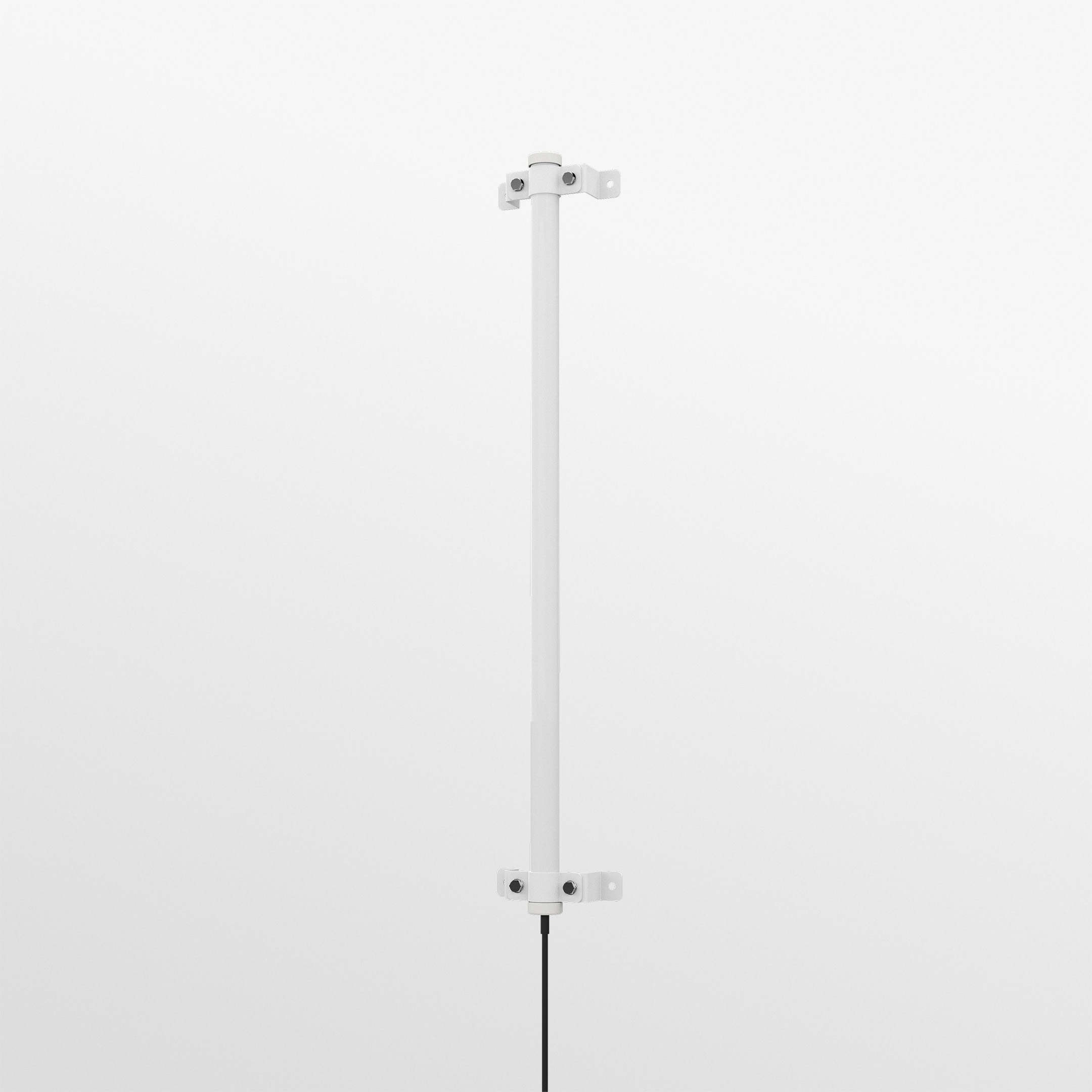

The antenna offers high gain Omni-directional performance for either the 868MHz or 915MHz frequency band. The efficient element design ensures a high first-time connection rate and an ongoing, robust communications link even in many low coverage areas. The antenna can be installed using the supplied wall mount brackets.
The antenna offers high gain Omni-directional performance for either the 868MHz or 915MHz frequency band. The efficient element design ensures a high first-time connection rate and an ongoing, robust communications link even in many low coverage areas. The antenna can be installed using the supplied wall mount brackets.
Part Numbers
| SKU | Colour | Frequency Range | Gain | UHF | B6SE-868-03NJ | White | 863 – 875MHz | 6dBi | Yes |
|---|
| 0.3m |
| N (f) | B6SE-915-03NJ | White | 880 – 960MHz | 6dBi | Yes |
| 0.3m |
| N (f) |
Specification
| ELECTRICAL DATA | |
|---|---|
| Pattern | Omnidirectional |
| Max Input Power(W) | 20 |
| Frequency Range | Gain | Check the part number table |
| Cellular LTE Elements | No |
| WIFI Elements | No |
| UHF Elements | No |
| GPS DATA | |
| Number of GPS Elements | No |
| MECHANICAL DATA | |
| Colour | White |
| Height | 665 (mm) | 26.18 (in) |
| Diameter | 25.5 (mm) | 1.00 (in) |
| Operating Temperature | -30°/ +70°C (-22.0°/ +158.0°F) |
| CABLE DATA | |
| Cable Length – Whip | 0.3 (m) | 0.98 (ft) |
| Cable Type (Whip) | CS29 |
| TERMINATION DATA | |
| Connector (VHF/UHF) Whip | N (f) |
| MOUNTING DATA | |
| Mounting Type Fixed | Mast; Wall |
| Mounting Methods | Mast; Wall | TECHNOLOGY DATA |
| Technology | UHF |
Accessories
Product Features
Benefits
Application
Product Features
- Light Duty Base Station Type Antenna
- Designed for Challenging Signal Environments
- Offers Omnidirectional Performance
- High Gain 6dBi Antenna
Benefits
- Easy to Install
- Designed for Outdoor Use
- Reduces the Lifetime Cost of the Solution
Application
- M2M & IoT Application
- LoRa & SigFox
